SecoGear series P/V-12 AC metal-enclosed switchgear is suitable for three-phase indoor AC power distribution systems with a nominal system voltage of 3.6~12kV. It meets the most stringent standards in terms of safety and reliability. This series of products can provide extremely cost-effective solutions for public power distribution, industry and buildings.

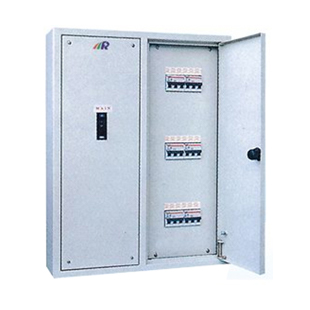

The XM type distribution box is suitable for single-phase, three-wire or three-phase five-wire terminal circuits with a rated voltage of 220 or 380V and a single-row load total current not greater than 80A. The overload, short circuit, leakage, and over-voltage protection of the device are used by non-professionals and do not require maintenance. The bottom box of the distribution box is made of high-quality cold-rolled steel plate, and the surface is sprayed with plastic, which has the characteristics of non-deformation, non-oxidation, and corrosion resistance.

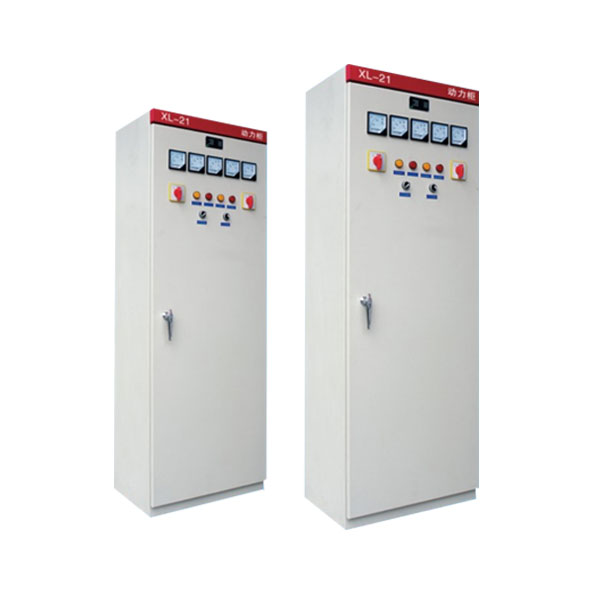

XL-21 low-voltage power distribution box is suitable for power distribution in power plants and industrial and mining enterprises, in three-phase four-wire or three-phase five-wire systems with a voltage of 500 volts and below. The XL-21 low-voltage power distribution box is an indoor device installed against the wall, and the screen is overhauled. The shell is made of steel plate. The knife switch operating handle is located on the upper right column of the box. It can be used as a power switch. According to user needs, different types of circuit breakers with different current levels can be selected to meet the needs of different users.

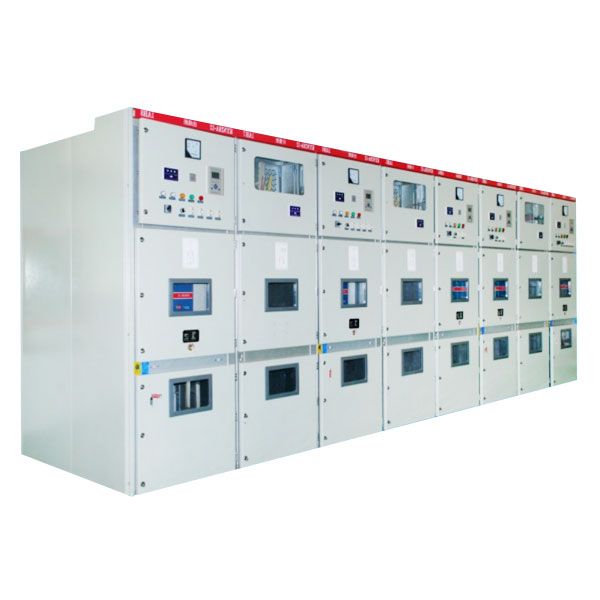

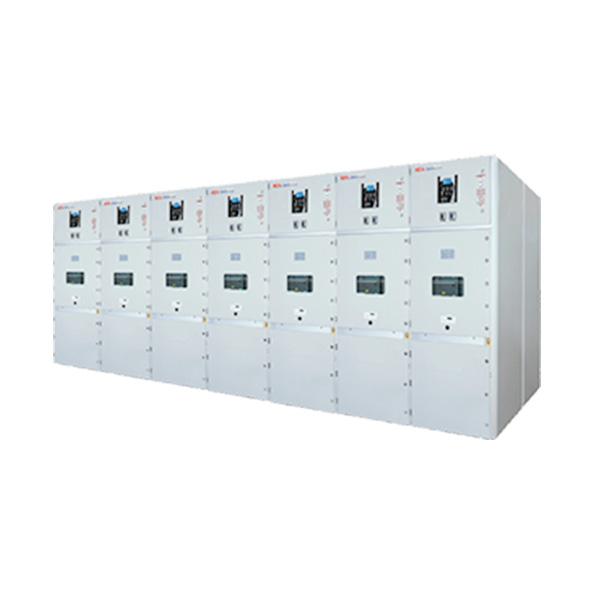

KYN28A-12 type removable AC metal-enclosed switchgear is a new product designed and developed by our company on the basis of absorbing advanced manufacturing technology at home and abroad. It is suitable for three-phase rated voltage 3-12KV, 50HZ, and rated current 630-3150A. The AC system is used for power transmission in power plants, power systems and industrial and mining enterprise substations for receiving and distributing power, achieving control, protection, and detection purposes. It can also be used to frequently start high-voltage motors to meet the "five prevention" chain requirements. The switchgear can be equipped with ABB’s VD4 vacuum circuit breaker, and can also be equipped with domestic VSI vacuum circuit breakers. It is a power distribution device with superior performance. It has flexible scheme combination, compact structure, safe and reliable, convenient maintenance and resistance. Advantages such as impact and corrosion resistance.

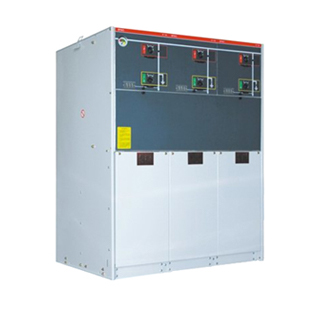

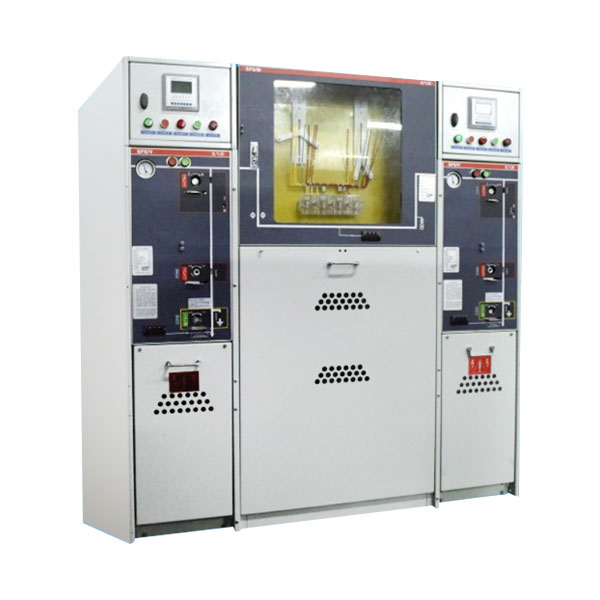

The self-developed SRC-12 type inflatable SF6 metal-enclosed gold-insulated ring network switchgear is widely used in 10KV/6KV power distribution systems, and is the first choice for all types of urban and rural user power distribution systems.

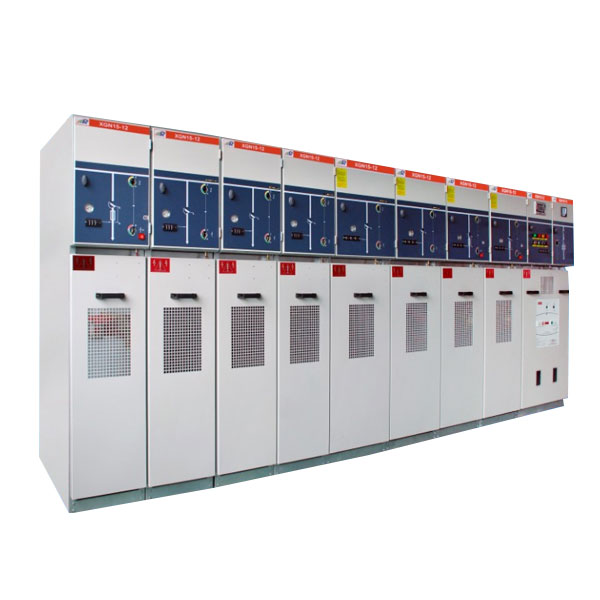

XGN15-12 series high-voltage ring network cabinet is a combined metal-enclosed 10KV switchgear. With its excellent performance, as the high-voltage equipment of the secondary substation and distribution room, it is widely used in various substations, switching stations, and cabinets. Type substation. Its various performance indicators meet or exceed similar domestic products, and are high-voltage products that have been used on a large scale in the power system in recent years and are prioritized for promotion. It has fully replaced similar imported products.

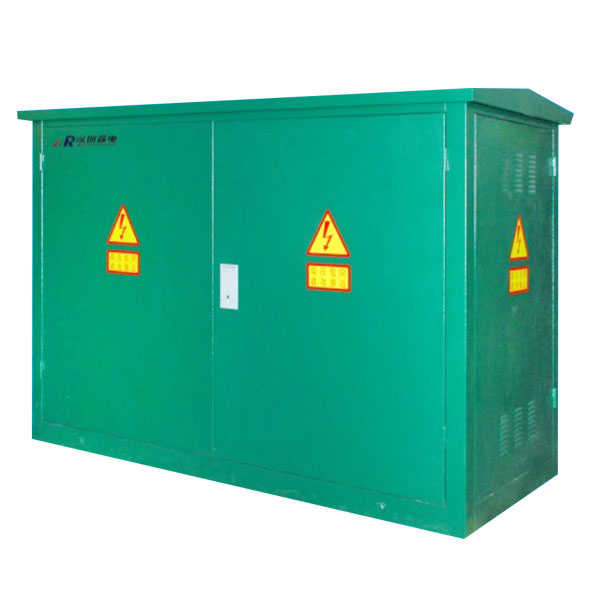

DFW-12 type 10KV outdoor cable distribution box. It is widely used in the relay and power distribution of 10KV power system. It is an important electrical equipment for the collection and tapping of outdoor cables. The branch box is divided into ordinary cable branch box and cable branch box with switch. It can also be divided into ordinary type and flood control type according to the sealing level. It is widely used in cities and areas where industrial and mining enterprises are concentrated. It is the first choice for realizing urban power grid cable transformation. Realizing ring network power supply.

Low-voltage IoT intelligent switch cabinet industrial control integrated machine monitoring device, through the Wifi wireless network to connect to the network Yunpinghe to monitor the parameters of the power supply in real time, analyze and process the data, generate various alarm information and alarm records, and communicate through wireless Upload the data to the automation system and data center to realize remote monitoring and management.

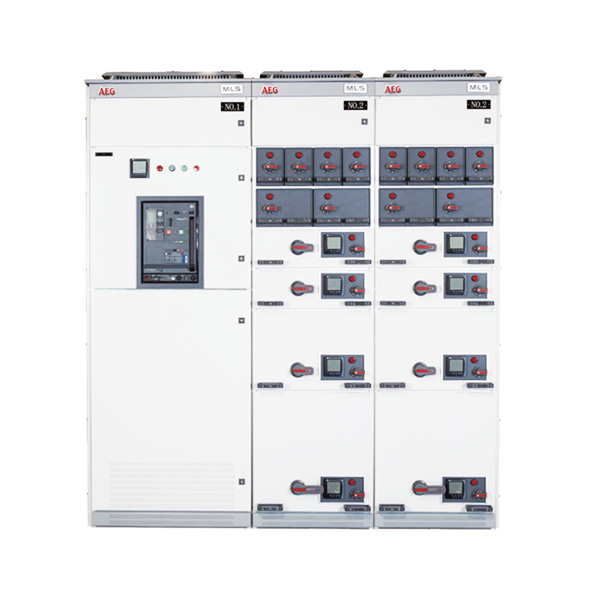

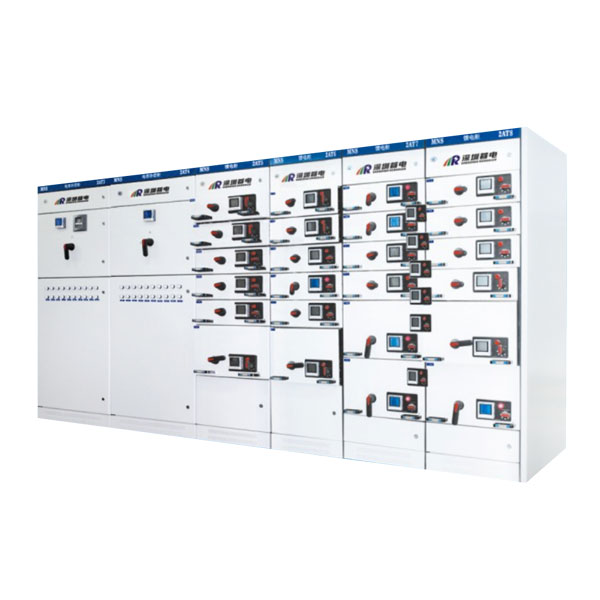

MLS type low-voltage switchgear is a low-voltage switchgear assembled by factory (FBA) using standard modules. It is suitable for power supply and distribution systems with AC 60 (50) Hz, rated working voltage ≤ 690V, and rated working current of 6300A and below. Used for electric energy distribution, conversion, control and reactive power compensation. The product complies with GB/T7251.12, JB/T9661 standard.

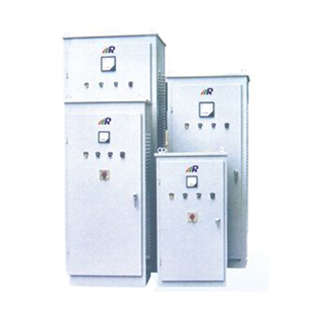

JJ1 series auto-decompression starting control cabinet is suitable for AC 50Hz, rated voltage 380V, power 11kW~400kW three-phase squirrel-cage induction motors for infrequent step-down starting, using the characteristics of autotransformer step-down to reduce the starting current, In order to reduce the impact on the transmission network when the motor starts.

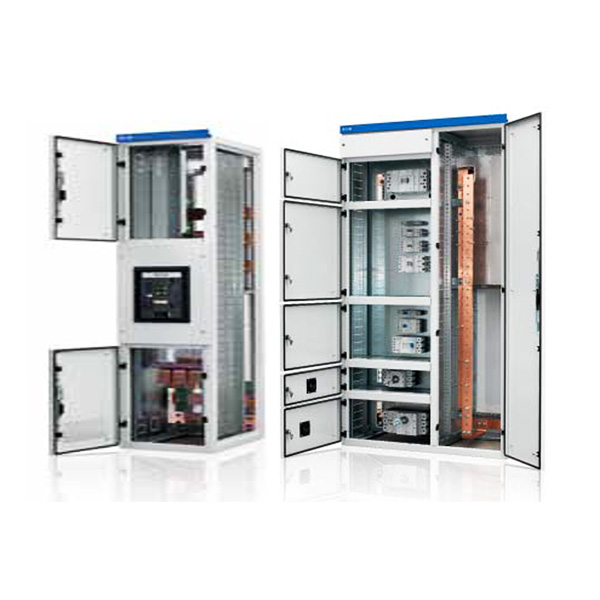

xEnergy is a low-voltage power distribution cabinet developed by EATON to cater to the market, which can not only meet the higher and higher technical and safety requirements, but also reduce the cost.

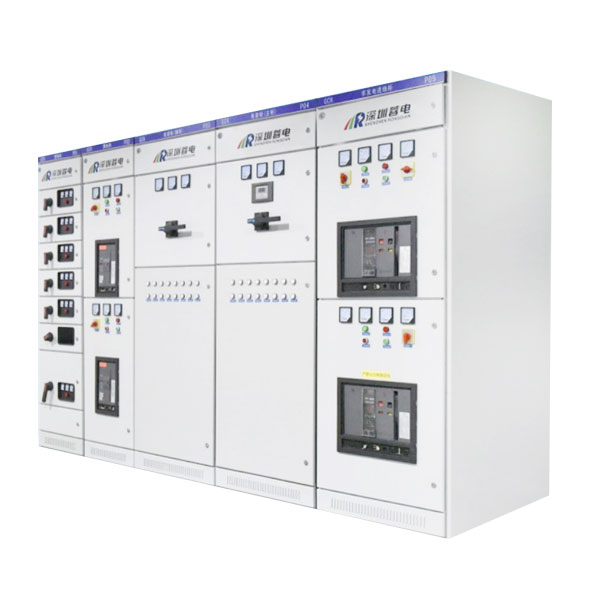

GCK series switchgear is suitable for industrial and mining enterprises. Three-phase AC frequency 50Hz, rated voltage 380V to 600V. The primary power distribution of the power system and the secondary power distribution or control equipment with asynchronous motors as the main control object; also suitable for stations and docks , High-rise buildings, especially suitable for motor group control systems and field control devices of power plants, substations, petroleum, chemical, metallurgy, machinery, and light industry production lines. If equipped with appropriate interfaces, they can also be connected with PC (program controller) or micro The processor forms an automatic control system for power supply and distribution.

The low-voltage withdrawable switchgear is suitable for power plants, substations, petrochemicals, metallurgical steel rolling, light industry and textiles and other factories and mining enterprises, residential communities, high-rise buildings and other places. It is used as a power system with AC 50-60Hz and rated working voltage of AC 660V and below Used for power conversion, distribution and control of power distribution equipment.

GGD type AC low-voltage power distribution cabinet is suitable for power users such as power plants, substations, industrial and mining enterprises as power distribution systems with AC 50HZ, rated working voltage 380V, and rated working current 3150A as power. Electric energy conversion, distribution and distribution of lighting and power distribution equipment For control purposes. The GGD cabinet adopts the form of a general cabinet. The product has high breaking capacity, good dynamic and thermal stability, flexible electrical scheme, convenient combination, series and strong practicability. Features such as novel structure and high level of protection not only shorten the production cycle, improve efficiency, but also save social resources. It can be used as a replacement product for low-voltage switchgear.

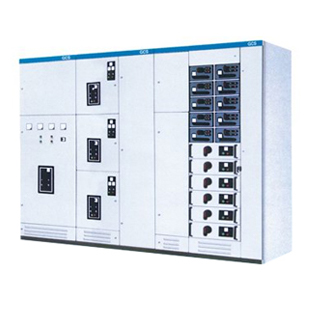

GCS AC low-voltage withdrawable switch is suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings and other industries. In large power plants, petrochemical systems and other places with a high degree of automation. It is required to interface with computers. As a three-phase AC frequency of 50 (60) Hz, a rated working voltage of 660V and below, and a ramp current of 4000A and below Low-voltage complete set of power distribution equipment used in the system for power distribution, centralized motor control, and reactive power compensation.

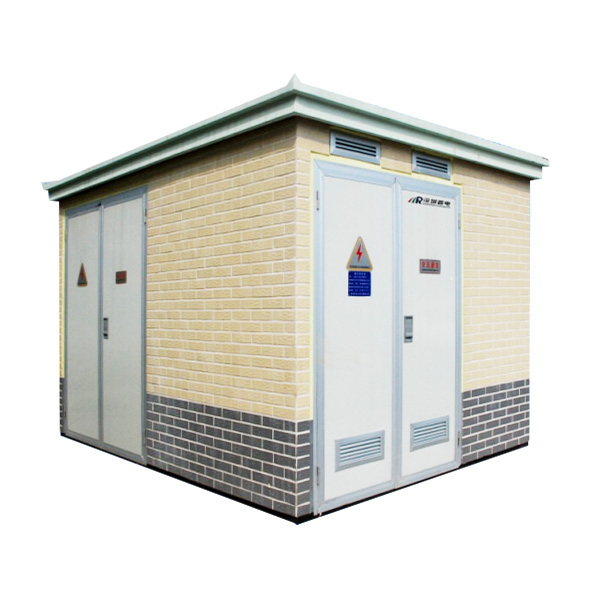

YBM-12 type high-voltage/low-voltage prefabricated substation is used in 10kV ring network power supply, dual power supply or terminal power supply system, as a complete set of equipment for substation, distribution metering, compensation, control and protection. Except for transformers installed in the substation, the high-voltage side is not equipped with four-position (or two-position) load switches, backup protection fuses and plug-in fuses; the low-voltage side can be equipped with control appliances, power distribution appliances, and compensation according to user requirements Devices and meters, etc. Use transformer oil as insulation and arc extinguishing medium.

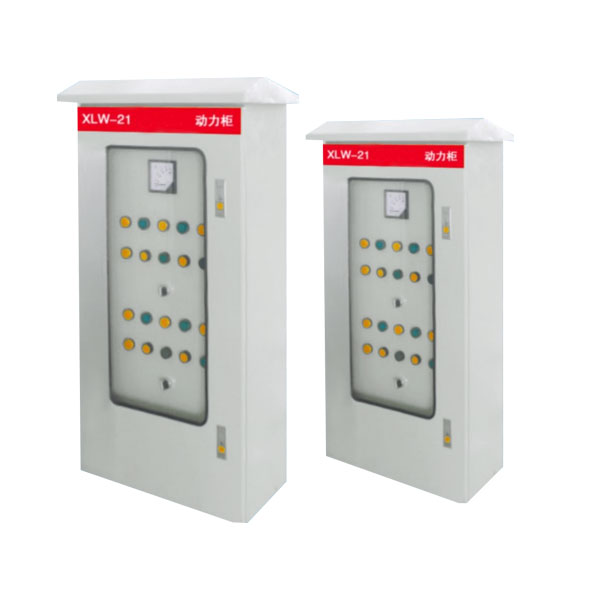

The XLW-21 AC low-voltage power distribution box is an outdoor device. There is a waterproof cover on the top of the box, and there is a gap between the top cover and the box body to facilitate heat dissipation and moisture. The cabinet is divided into an inner door and an outer door. The outer door is surrounded by waterproof rubber strips and waterproof grooves. The inner door can be equipped with meters, lights, buttons, and changeover switches. The cabinet is divided into two types: floor type and hanging type. The bottom of the box has cable inlet and outlet holes.

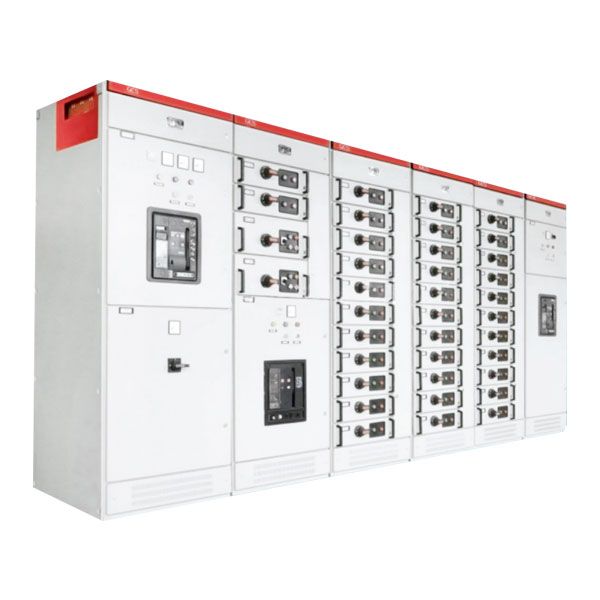

GCS (BFC) type low-voltage withdrawable switchgear is suitable for power distribution systems in power plants, petroleum, chemical, metallurgy, textile, high-rise buildings and other industries. Used as a three-phase AC frequency of 50 (60) HZ, rated working voltage of 380V (440V), (660V), and rated current of 6300A and below in power distribution, motor centralized control, and reactive power compensation The low-voltage complete set of power distribution device adopts standard modular design. Each functional unit is relatively independent. The outlet unit can be installed up to 22 channels. The mechanism adopts a screw propulsion mechanism, which is stable and lifeable, ensuring that the same unit can be interchanged and improving power supply reliability!

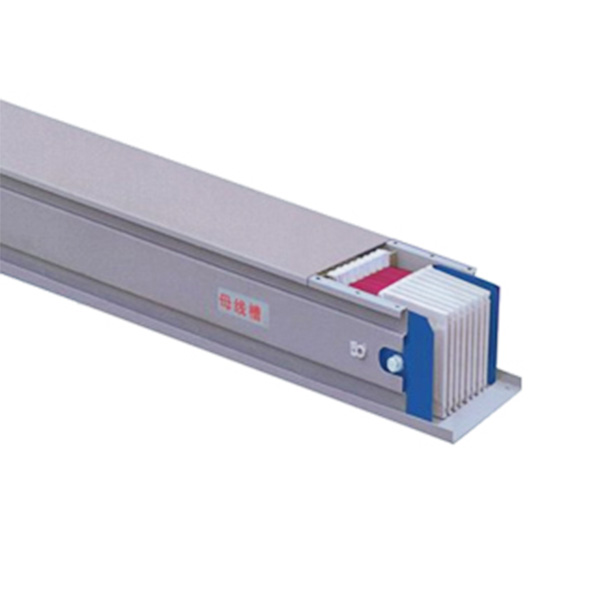

CCX-1A densely insulated busway is developed by our company based on traditional dense busway through process improvement. The busbar conductor is made of electrolytic copper containing more than 99.99% copper. After high-quality processing, it is outsourced with special high-strength insulating materials. Makes the conductive copper bars have excellent insulation performance. The phases and the external charging are tightly attached together, which can quickly dissipate the heat generated by the copper bar to the outside, effectively reducing the temperature rise of the busway and increasing the current carrying capacity of the bus. At the same time, the bus has small size, stable mechanical and electrical performance, and can withstand greater electrical stress and thermal stress. The protection grade is IP4, IP54. The bus has many functional units and flexible installation and configuration. It can meet the power transmission and distribution requirements of various industrial and mining, enterprises and institutions, high-rise buildings, and workshops.

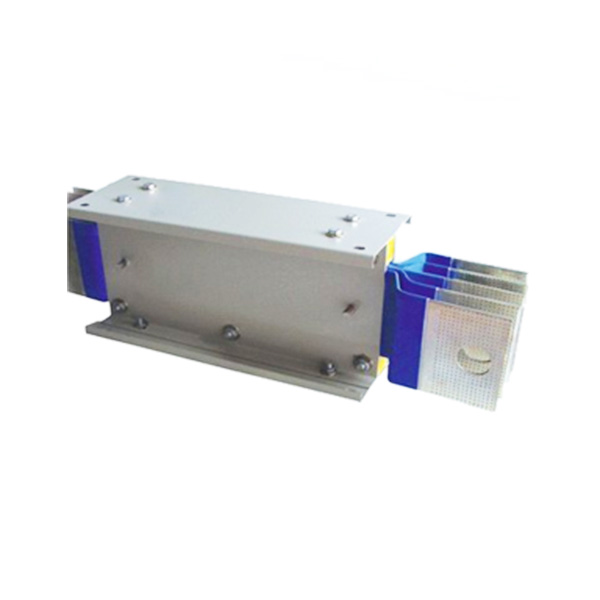

This bus bar is cast by our company based on market demand, using advanced raw materials and technology. The interphase is poured with international advanced insulation materials, which avoids the damage to the insulation during the traditional assembly process, further improves the insulation reliability of the product, prolongs the service life of the bus bar, and has anti-corrosion and fire-resistant properties, and the appearance is more beautiful. The protection level reaches IP68. The CCX-2A busway system is suitable for the transmission and distribution power supply systems of various large industrial plants, office, commercial and residential buildings, large shopping malls, airports, stations, stadiums, exhibition halls, and chemical, metallurgical and other places.

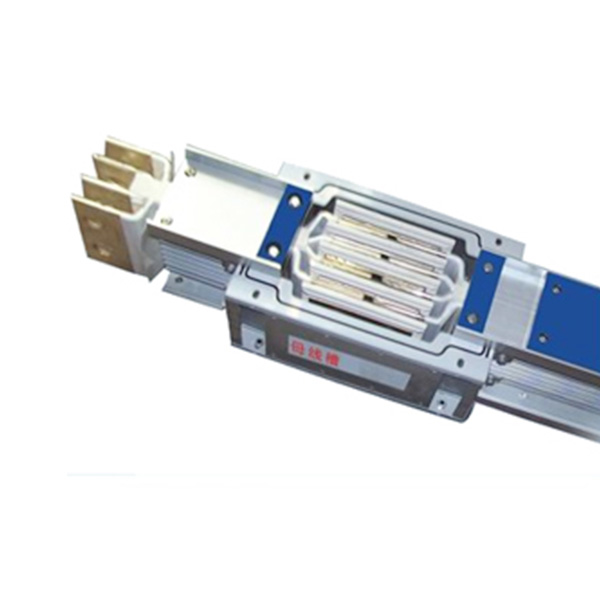

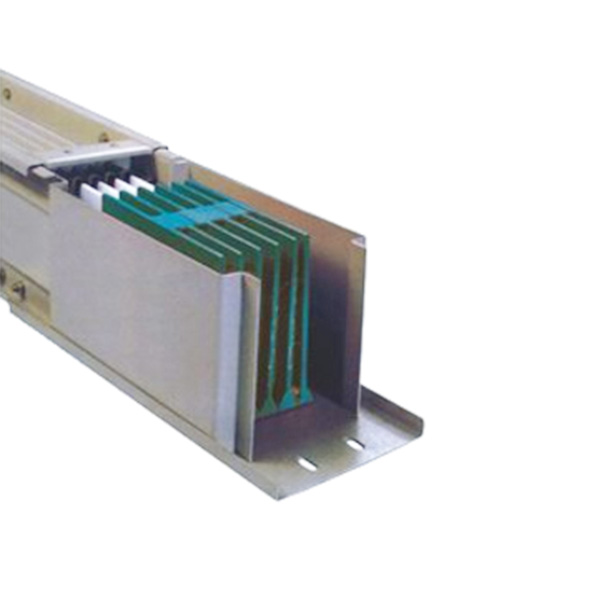

CMC-2B air-insulated bus duct is made by improved processing on the basis of air-type bus duct. The busbar conductor is made of electrolytic copper with a copper content of more than 99,99%. After high-quality processing, the outer surface is wound with a polyester insulating film, and then shrinked with a PVC heat-shrinkable tube, which significantly enhances the insulation performance of the copper busbar. The phases and shells are separated by flame-retardant insulating blocks, and then assembled in a closed and well-grounded metal shell, the electrical and mechanical properties are very stable. The shell is processed and formed by high-quality cold-rolled plates, and the surface is treated with electrostatic spray, which greatly improves the corrosion resistance.

CMC-3B high-protection air-insulated busway is a new product specially developed by our company using advanced technology at home and abroad to meet the demand for high protection capabilities of modern power transmission and transformation systems. The product has been tested by relevant national departments, and all technical indicators are at the leading level.

CMC-FH is a kind of busbar of power transmission and distribution thousand-wire system specially developed by our company for fire protection and places with higher fire protection requirements. It is suitable for three-phase four-wire or three-phase five-wire power supply and distribution system with system 50-60HZ, voltage 660V and below, and rated current 250A-3150A.

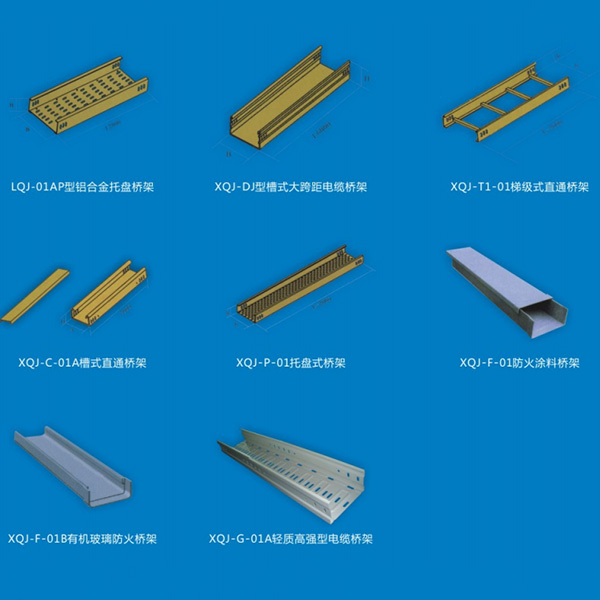

The bridge is a bracket for supporting and laying cables. Cable trays are commonly used in engineering. Cable trays are used as a supporting project for wiring projects. There is currently no specific specification guidance. The specifications and programs of various manufacturers lack universality. Therefore, the design and selection The process should be based on the type and quantity of the weak current system lines, a reasonable selection of the applicable bridge.

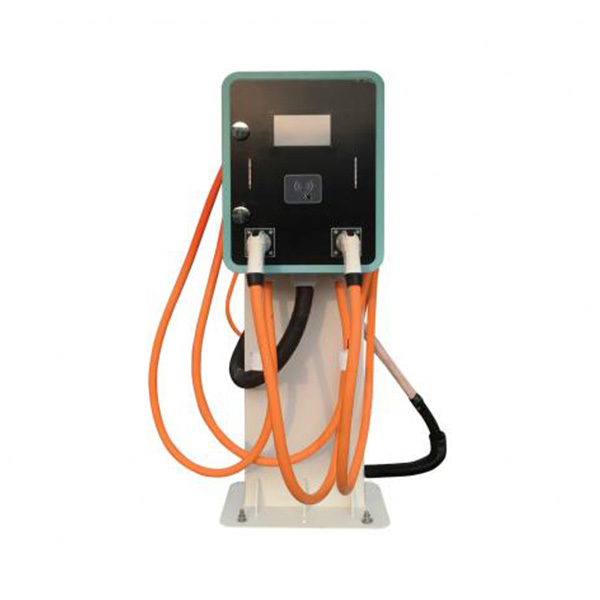

The AC charger system is an AC power supply device for electric vehicles with complete protection functions and human-computer interaction functions. It is simple to operate and suitable for installation in indoor and outdoor electric vehicle charging stations, public parking lots, residential district parking lots, large commercial building parking and roads. Side parking spaces and other places.

深圳市蓉電實業有限公司自主研發生産的HXGN18-12型充氣式 SF6金屬封閉金絕緣系列環網開關櫃.廣泛用于10KV/6KV配電系統.是城鄉各類用戶變配電系統的首選開關産品。 開關櫃爲模塊化單元模式.可根據不同用途進行組合;由固定式單元組合與可擴展型單元兩大類，滿足各種變電站對緊湊型開關櫃靈活使用的需要。 HXGN18-12型充氣式開關櫃是一個完全密封的系統.其所有帶電部件以及開關封閉在不鏽鋼的充體内。整個開關裝皿不受外部環境條件的影響.從而可以确保運行可靠性及人身安全，并且實現了免維護。通過選擇可擴展母線，可以實現任何組合.達到全模塊化。擴展母線完全絕緣和屏蔽，确保了高可靠性和安全性。 HXGN18-12型充氣式開關櫃同時可以提供工廠化的自動化解決方案.形成了智能化開關的概念.并将現場安裝及調試工作量降到了最低。 HXGN18-12型開關櫃分爲非擴展标準配置和可擴展标準配置。由幹具有全模塊和半模塊的組合性以及自身的可擴展性，因而具有極其特殊的靈活性。 HXGN18-12型充氣式開關執行GB标準。在室内條件下(20°C)運行的設計壽命超過30年。

本箱爲戶外裝置。箱頂有防水蓋，頂蓋于箱體之間留有空除，便于散熱和水分。箱體分内門、外門，外門周邊加防水膠條和防水槽，内門可裝儀表、燈、按鈕和轉換開關等。箱體分落地和懸挂式兩種，箱底部開電纜進出線孔。

GCS(BFC)型低壓抽出式開關櫃适用于發電廠、石油、化工、冶金、紡織、高層建築等行業的配電系統。作爲三相交流頻率爲 50 (60) HZ,額定工作電壓爲380V (440V )、( 660V)，額定電流爲6300A及以下的發、供電系統中的配電、電動機集中控制、無功功率補償使用的低壓成套配電裝置，該裝置采用标準模數化設計，各個功能單元相對獨立，出線單元最多可裝22路，機構采用絲杠推進機構，平穩可命，确保相同單元可互換，提高供電可靠性!

深圳市蓉電實業有限公司自主研發生産的HXGN18-12型充氣式 SF6金屬封閉金絕緣系列環網開關櫃.廣泛用于10KV/6KV配電系統.是城鄉各類用戶變配電系統的首選開關産品。 開關櫃爲模塊化單元模式.可根據不同用途進行組合;由固定式單元組合與可擴展型單元兩大類，滿足各種變電站對緊湊型開關櫃靈活使用的需要。 HXGN18-12型充氣式開關櫃是一個完全密封的系統.其所有帶電部件以及開關封閉在不鏽鋼的充體内。整個開關裝皿不受外部環境條件的影響.從而可以确保運行可靠性及人身安全，并且實現了免維護。通過選擇可擴展母線，可以實現任何組合.達到全模塊化。擴展母線完全絕緣和屏蔽，确保了高可靠性和安全性。 HXGN18-12型充氣式開關櫃同時可以提供工廠化的自動化解決方案.形成了智能化開關的概念.并将現場安裝及調試工作量降到了最低。 HXGN18-12型開關櫃分爲非擴展标準配置和可擴展标準配置。由幹具有全模塊和半模塊的組合性以及自身的可擴展性，因而具有極其特殊的靈活性。 HXGN18-12型充氣式開關執行GB标準。在室内條件下(20°C)運行的設計壽命超過30年。

GCS型低壓抽出式開關櫃(以下簡稱裝置)是兩部聯合設計組根據行業主管部門、廣大電力用戶及設計單位的要求設計研制出的符合國情、具有較高技術性能指标、能夠适應電力市場發展需要并可與現有引進産品競争的低壓抽出式開關櫃。該裝置目前已被電力用戶廣泛選用。裝置适用于發電廠、石油、化工、冶金、紡織、高層建築等行業的配電系統。在大型發電廠、石化系統等自動化程度高.要求與計算機接口的場所.作爲三相交流頻率爲50(60)Hz,額定工作電壓爲660V及以下，傾定電流爲4000A及以下的發、供電系統中的配電、電動機集中控制、無功功率補償使用的低壓成套配電裝置。裝置的設計符合下列标準IEC439-1《低壓成套開關設備和控制設備》GB7251.1一1997(低壓成套開關設備和控制設備) .結構特點.裝置的主構架采用8MF型鋼，構架采用拼裝和部分焊接兩種結構形式。主構架上均有安裝模數孔E=20mm。.裝置各功能室嚴格分開，其隔室主要分爲功能單元室、母線室、電纜室.各單元的功能相對獨立。.裝置櫃體的尺寸系列如表4。

本箱爲戶外裝置。箱頂有防水蓋，頂蓋于箱體之間留有空除，便于散熱和水分。箱體分内門、外門，外門周邊加防水膠條和防水槽，内門可裝儀表、燈、按鈕和轉換開關等。箱體分落地和懸挂式兩種，箱底部開電纜進出線孔。

GCS(BFC)型低壓抽出式開關櫃适用于發電廠、石油、化工、冶金、紡織、高層建築等行業的配電系統。作爲三相交流頻率爲 50 (60) HZ,額定工作電壓爲380V (440V )、( 660V)，額定電流爲6300A及以下的發、供電系統中的配電、電動機集中控制、無功功率補償使用的低壓成套配電裝置，該裝置采用标準模數化設計，各個功能單元相對獨立，出線單元最多可裝22路，機構采用絲杠推進機構，平穩可命，确保相同單元可互換，提高供電可靠性!

深圳市蓉電實業有限公司自主研發生産的HXGN18-12型充氣式 SF6金屬封閉金絕緣系列環網開關櫃.廣泛用于10KV/6KV配電系統.是城鄉各類用戶變配電系統的首選開關産品。 開關櫃爲模塊化單元模式.可根據不同用途進行組合;由固定式單元組合與可擴展型單元兩大類，滿足各種變電站對緊湊型開關櫃靈活使用的需要。 HXGN18-12型充氣式開關櫃是一個完全密封的系統.其所有帶電部件以及開關封閉在不鏽鋼的充體内。整個開關裝皿不受外部環境條件的影響.從而可以确保運行可靠性及人身安全，并且實現了免維護。通過選擇可擴展母線，可以實現任何組合.達到全模塊化。擴展母線完全絕緣和屏蔽，确保了高可靠性和安全性。 HXGN18-12型充氣式開關櫃同時可以提供工廠化的自動化解決方案.形成了智能化開關的概念.并将現場安裝及調試工作量降到了最低。 HXGN18-12型開關櫃分爲非擴展标準配置和可擴展标準配置。由幹具有全模塊和半模塊的組合性以及自身的可擴展性，因而具有極其特殊的靈活性。 HXGN18-12型充氣式開關執行GB标準。在室内條件下(20°C)運行的設計壽命超過30年。
